Maxim MAX77752多路功率管理IC解决方案

2018-07-26
类别:无线互联
eye 480
文章创建人 拍明芯城

原标题:Maxim MAX77752多路功率管理IC解决方案

  Maxim公司的MAX77752是高度集成的多路功率管理IC,包括三个降压转换器,一个低压降线性稳压器,两个外接稳压器使能输出,两个专用负载开关控制器和浪涌电流限制器,提供高性能功率管理元件,高精度监测和专用顶级控制器,是效率尺寸优化的解决方案.主要用在固态驱动系统,手持设备,游戏控制台,自动化系统,照相机和无人机.本文介绍了MAX77752主要优势和特性,框图以及评估板MAX77752 EVK主要优势和特性,框图表,电路图,材料清单和PCB设计图.

  The MAX77752 is a highly-integrated power manage­ment solution including three step-down converters, a low-dropout linear regulator, two external regulators enable outputs, two dedicated load switch controllers, and an inrush-current limiter which can be configured as a third load switch controller using OTP. The MAX77752 provides a combination of high-performance powermanagement components, high-accuracy monitoring, and a customized top-level controller that results in anefficient, size optimized solution.

  The 40-pin, 5mm x 5mm x 0.8mm, 0.4mm pitch TQFN package is ideal for space constrained applications.

  Numerous factory programmable options allow the device to be tailored for many variations of the end application.

  MAX77752主要优势和特性:

  Highly IntegratedThree Buck RegulatorsIntegrated High-Accuracy BrownoutComparators

  One Low-Dropout Linear RegulatorLow-Input Voltage

  Two Dedicated Load Switch Controllers

  One Inrush-Current Limiter, Configurable to be Load Switch 3 Controller Using OTP

  Two External Regulator Enable Outputs

  Voltage Monitor for Backup Power Control

  Highly Flexible and ConfigurableI2C-Compatible Interface

  Factory OTP Options Available

  Flexible Power Sequencer

  Configurable Sleep-State Control

  Small Size40-Pin, 5mm x 5mm x 0.8mm, 0.4mm Pitch TQFN

  70mm2 Total Solution Size

  MAX77752应用:

  Solid-State Drive Systems

  Handheld Devices

  Gaming Consoles

  Drones

  Automation Systems

  Cameras

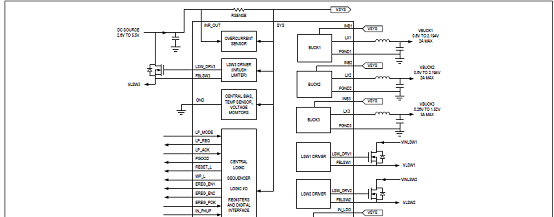

  图1.MAX77752简化框图

  评估板MAX77752 EVK

  The MAX77752 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the highly integrated MAX77752 PMIC. The MAX77752 comprises three buck converters, a low dropout linear regulator, two external regulators enable outputs, two dedicated load switch controllers, and an inrush-current limiter which can be configured as a third load switch controller using OTP.

  The EV kit also includes a MAXQ2000 microcontroller command module that provides the I2C interface to control power sequence, inrush current, individual output on/off, and setting regulator output voltage.

  The MAX77752 evaluation software is provided for easy evaluation.

  评估板MAX77752 EVK主要优势和特性:

  USB to I2C Converter Allows for Easy Communication

  Level Translator (MAX3395) Allows for Adjusting I2C Bus Voltage from 1.8V to 3.3V

  On-Board Electronics Load Allows for Easy Evaluation GUI Allows Static/Dynamic Load Adjustment for Buck Converters, LDO, LSWs, and SYS

  MOSFET can be Driven by External Function Generator to Evaluate Transient Performance for Each Regulator

  Proven PCB Reference Design and Layout

  Fully Assembled and Tested

评估板MAX77752 EVK外形图

  图2.评估板MAX77752 EVK外形图

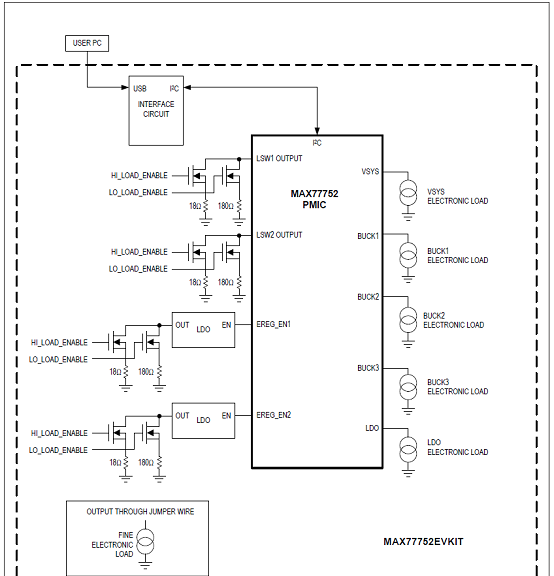

评估板MAX77752 EVK框图

  图3.评估板MAX77752 EVK框图

评估板MAX77752 EVK顶视图

  图4.评估板MAX77752 EVK顶视图

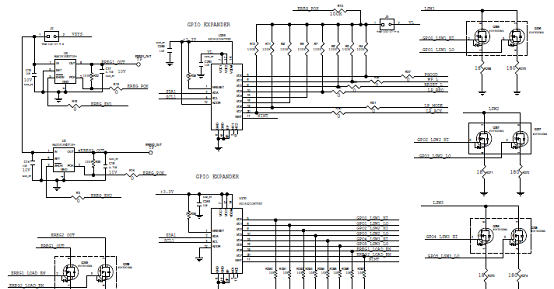

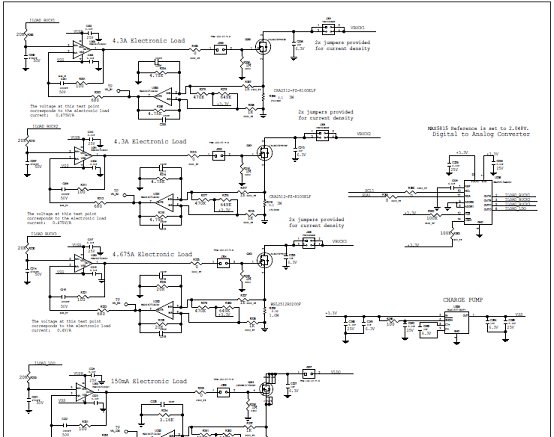

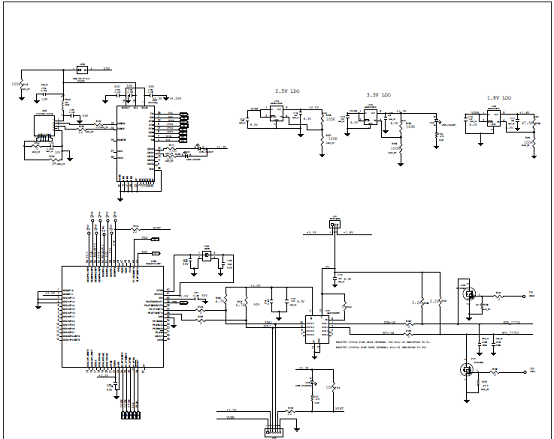

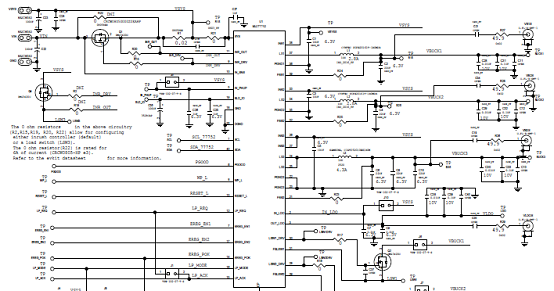

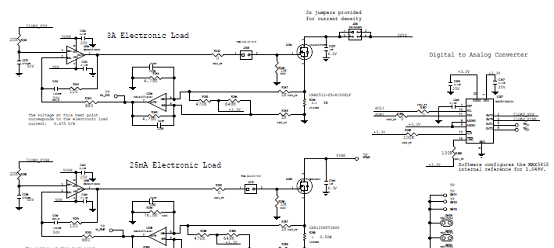

评估板MAX77752 EVK电路图(1)

  图5.评估板MAX77752 EVK电路图(1)

评估板MAX77752 EVK电路图(2)

  图6.评估板MAX77752 EVK电路图(2)

评估板MAX77752 EVK电路图(3)

  图7.评估板MAX77752 EVK电路图(3)

评估板MAX77752 EVK电路图(4)

  图8.评估板MAX77752 EVK电路图(4)

评估板MAX77752 EVK电路图(5)

  图9.评估板MAX77752 EVK电路图(5)

  评估板MAX77752 EVK材料清单:

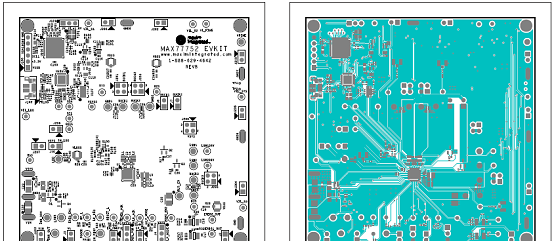

评估板MAX77752 EVK PCB设计图(1):左:顶层元件丝印;右:顶层布局

  图10.评估板MAX77752 EVK PCB设计图(1):左:顶层元件丝印;右:顶层布局

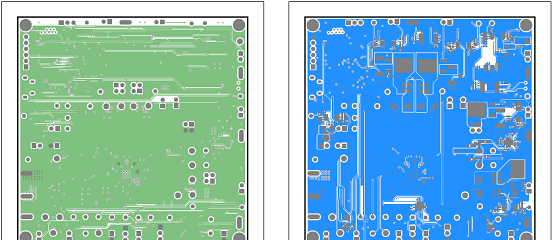

评估板MAX77752 EVK PCB设计图(2):左:内层3;右:底层布局

  图11.评估板MAX77752 EVK PCB设计图(2):左:内层3;右:底层布局

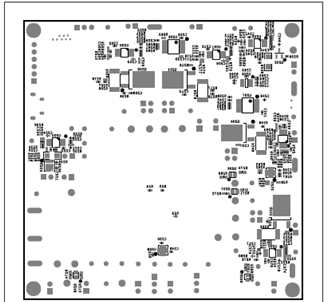

评估板MAX77752 EVK PCB设计图(3):底层丝印

  图12.评估板MAX77752 EVK PCB设计图(3):底层丝印

  详情请见:

20180622111025458.pdf

20180622111017662.pdf
